3D Settings

Portalgraph supports left-right split, top-bottom split, anaglyph, and dual output 3D modes. Configure the appropriate mode for your display device.

To change the 3D mode, follow the steps below.

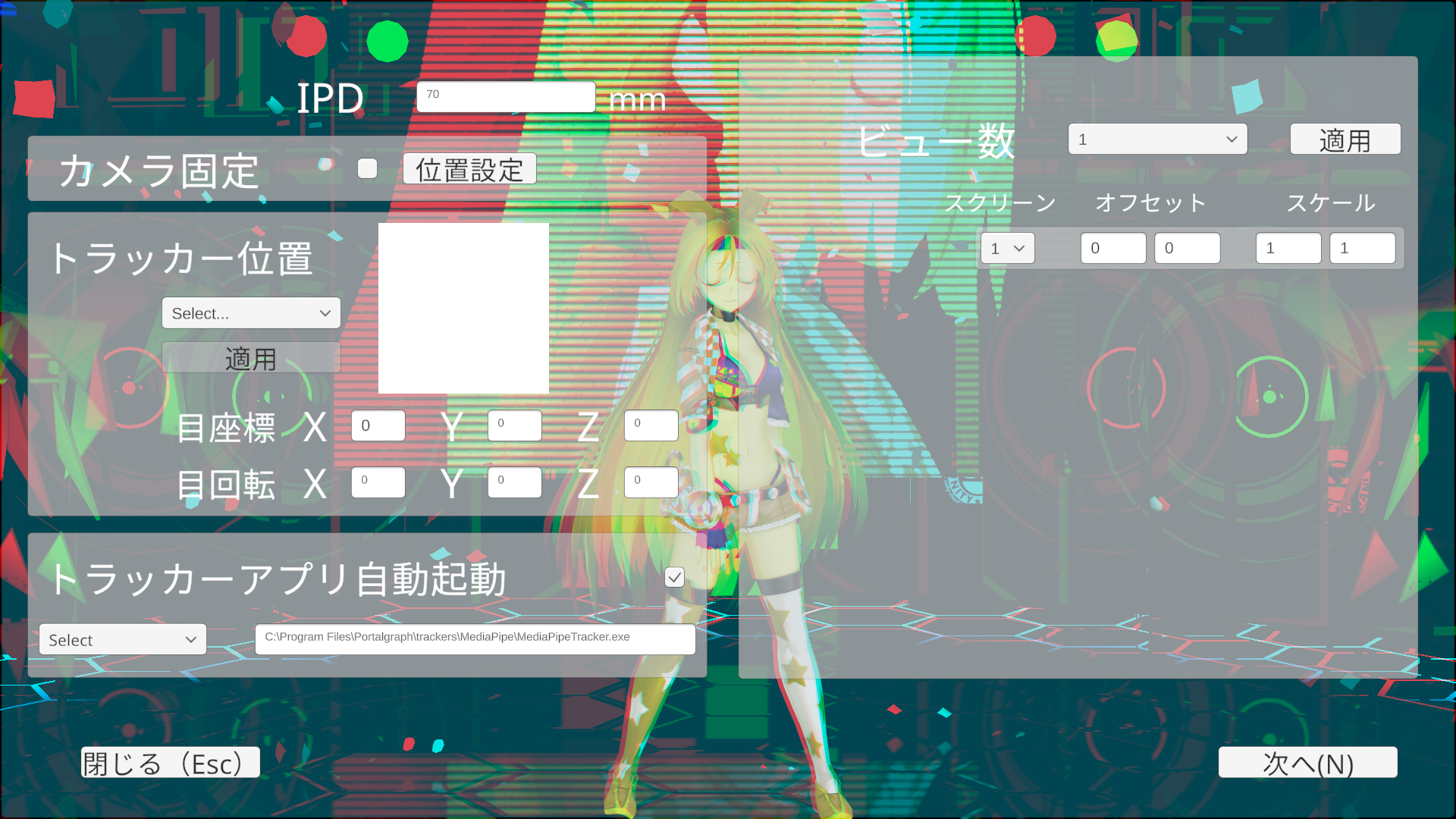

Press F12 in the Portalgraph application to open the settings screen.

Click "Next" to open the calibration settings screen.

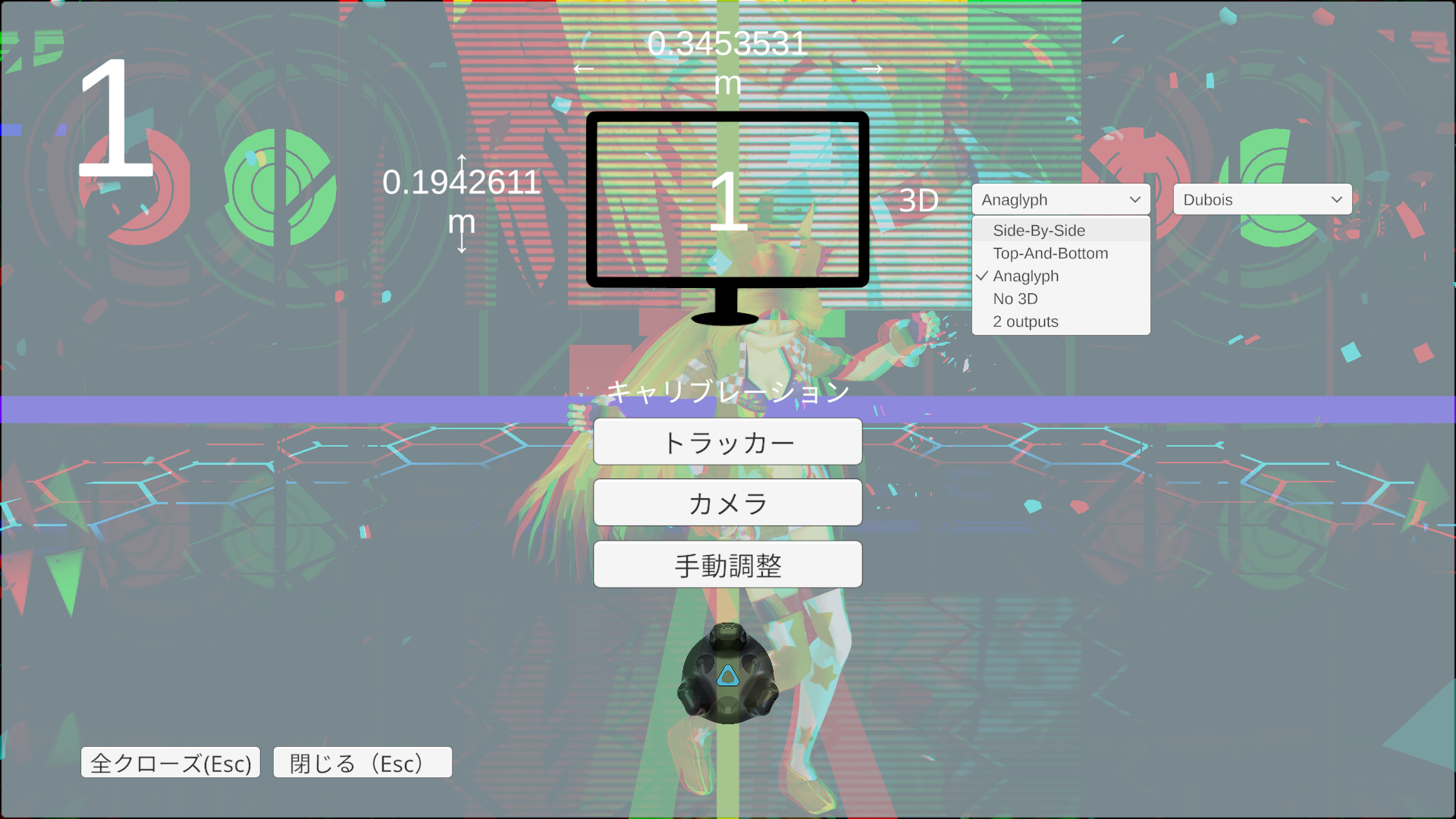

Select from the 3D dropdown to change the 3D mode. The available modes are as follows:

Label	Description	Options
Side-By-Side	Left-right split 3D
Top-And-Bottom	Top-bottom split 3D
Anaglyph	Anaglyph (red-blue) 3D	Color separation method can be selected.
2D	2D (no 3D)
2 outputs	Dual output	Select the output screen for the right eye.
